2 Grouping `ppp`-Hypercolumn

The examples in Chapter 2 require

library(groupedHyperframe)

search path & loadedNamespaces on author’s computer

search()
#  [1] ".GlobalEnv"                "package:groupedHyperframe" "package:stats"             "package:graphics"          "package:grDevices"         "package:utils"             "package:datasets"
#  [8] "package:methods"           "Autoloads"                 "package:base"
loadedNamespaces() |> sort.int()
#  [1] "abind"             "base"              "cli"               "cluster"           "codetools"         "compiler"          "datasets"          "deldir"            "digest"
# [10] "doParallel"        "dplyr"             "evaluate"          "farver"            "fastmap"           "fastmatrix"        "foreach"           "generics"          "geomtextpath"
# [19] "GET"               "ggplot2"           "glue"              "goftest"           "graphics"          "grDevices"         "grid"              "gridExtra"         "groupedHyperframe"
# [28] "gtable"            "htmltools"         "htmlwidgets"       "iterators"         "jsonlite"          "knitr"             "lattice"           "lifecycle"         "magrittr"
# [37] "Matrix"            "matrixStats"       "methods"           "nlme"              "otel"              "parallel"          "patchwork"         "pillar"            "pkgconfig"
# [46] "polyclip"          "pracma"            "R6"                "RColorBrewer"      "rlang"             "rmarkdown"         "rstudioapi"        "S7"                "scales"
# [55] "SpatialPack"       "spatstat.data"     "spatstat.explore"  "spatstat.geom"     "spatstat.random"   "spatstat.sparse"   "spatstat.univar"   "spatstat.utils"    "splines"
# [64] "stats"             "survival"          "systemfonts"       "tensor"            "textshaping"       "tibble"            "tidyselect"        "tools"             "utils"
# [73] "vctrs"             "viridisLite"       "xfun"              "yaml"

In Chapter 2, the author

creates a grouped hyper data frame with one-and-only-one point-pattern (ppp) hypercolumn (Section 2.1);
discusses the batch processes of spatial point-pattern analyses applicable to the one-and-only-one point-pattern hypercolumn of a (grouped) hyper data frame (Section 2.2);
summarizes the results of the batch-processes (Section 2.3)
aggregates the summary statistics over the nested grouping structure (Section 2.4).

2.1 Creation

Listing 2.1 creates a grouped hyper data frame s with one-and-only-one (Section 25.13) point-pattern (ppp, Chapter 35) hypercolumn from the data frame wrobel_lung. This process (Chapter 44)

takes a data frame wrobel_lung as input;
creates a point-pattern hypercolumn ppp. from the $x$- and $y$-coordinates, the numeric mark hladr and the multi-type mark phenotype, per image_id nested within patient_id;
aggregates other variables of interest, e.g., OS, gender and age, at the level of image_id nested within patient_id. Those variables must be identical within the nested grouping structure ~patient_id/image_id;
returns a grouped hyper data frame s.

Listing 2.1: Create a grouped hyper data frame with one-and-only-one ppp-hypercolumn

s = wrobel_lung |>
   grouped_ppp(formula = hladr + phenotype ~ OS + gender + age | patient_id/image_id, data = _, coords = ~ x + y)

Readers may view the grouped hyper data frame s (Listing 2.1) by simply typing s at the R console prompt and pressing Enter (Listing 2.2),

Listing 2.2: View grouped hyper data frame s (Listing 2.1)

s
# Grouped Hyper Data Frame: ~patient_id/image_id
#
# 15 image_id nested in
# 3 patient_id
#
#       OS gender age    patient_id          image_id  ppp.
# 1  3488+      F  85 #01 0-889-121 [40864,18015].im3 (ppp)
# 2  3488+      F  85 #01 0-889-121 [42689,19214].im3 (ppp)
# 3  3488+      F  85 #01 0-889-121 [42806,16718].im3 (ppp)
# 4  3488+      F  85 #01 0-889-121 [44311,17766].im3 (ppp)
# ✂️ --- output truncated --- ✂️

Also, readers may view the summary information of the grouped hyper data frame s (Listing 2.1) using the function summary() (Listing 2.3),

Listing 2.3: Summarized information of grouped hyper data frame s (Listing 2.1)

s |>
  summary()
# Grouped Hyper Data Frame: ~patient_id/image_id
#
# 15 image_id nested in
# 3 patient_id
#
#                 OS         gender        age                patient_id              image_id ppp.
#             (Surv)         (factor) (numeric)                 (factor)              (factor) (ppp)
#  <time-to-event> :(Surv)   F: 5     Min.   :66.00   #01 0-889-121:5    [36953,13765].im3:1
#  [right-censored]:5        M:10     1st Qu.:66.00   #02 1-037-393:5    [39206,15250].im3:1
#  [observed]      :10                Median :84.00   #03 2-080-378:5    [40242,17359].im3:1
#                                     Mean   :78.33   #04 2-223-153:0    [40863,16444].im3:1
#                                     3rd Qu.:85.00   #05 2-286-740:0    [40864,18015].im3:1
#                                     Max.   :85.00   #06 2-306-657:0    [41191,13764].im3:1
#                                                     (Other)      :0    (Other)          :9

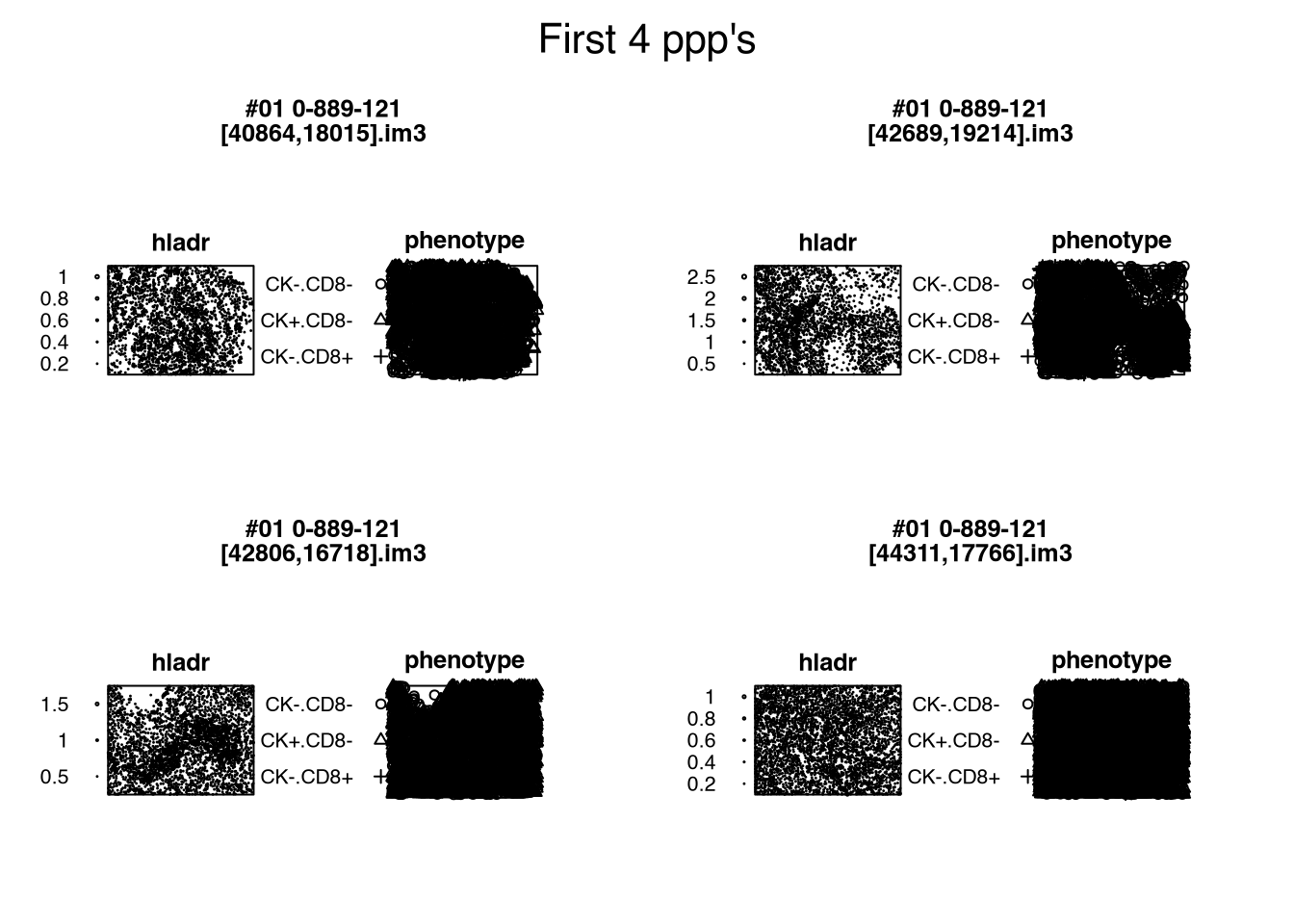

Figure 2.1 visualizes the one-and-only-one point-pattern hypercolumn s$ppp. using package spatstat.geom (v3.7.0.6); further details are provided in Section 25.2.

Listing 2.4: Review: plot point-pattern hypercolumn s$ppp. (Listing 2.1)

Code

s[1:4, ] |> # first 4 rows
  spatstat.geom::plot.hyperframe(
    e = quote(plot(ppp., main = paste(patient_id, image_id, sep = '\n'))),
    main = "First 4 ppp's"
  )

Figure 2.1: Point-pattern hypercolumn *`s$ppp.`* (Listing 2.1)

Readers must note that Chapter 1 and Section 2.1 describe two independent approaches to

create a grouped hyper data frame, from a data frame (Chapter 1, Listing 1.2, Section 17.1);
create a grouped hyper data frame with one-and-only-one point-pattern hypercolumn, from a data frame (Section 2.1, Listing 2.1, Chapter 44).

These two approaches are independent and unrelated to each other (Section 56.1).

2.2 Batch Process on Eligible Marks

Listing 2.5 applies multiple batch processing functions to the eligible marks in each point-pattern of the one-and-only-one point-pattern hypercolumn s$ppp. in the grouped hyper data frame s (Listing 2.1) using a pipeline,

the conditional mean $E(r)$ of the numeric mark hladr using function Emark_() (Table 35.22). The results are stored in the function-value-table (fv, Chapter 19) hypercolumn (Chapter 20) $hladr.E of the output grouped hyper data frame;
the multi-type nearest-neighbor distance $G_{\text{CK+.CD8- to CK-.CD8+}}(r)$ of the multi-type mark phenotype using function Gcross_() (Table 35.24). The results are stored in the function-value-table hypercolumn $phenotype.G of the output grouped hyper data frame;
the nearest neighbor distance from CK+.CD8- to CK-.CD8+ marks in the multi-type mark phenotype using function nncross_() (Table 35.25). The results are stored in the numeric-hypercolumn $phenotype.nncross of the output grouped hyper data frame.

The functions Emark_(), Gcross_() and nncross_() in Listing 2.5 are independent of one another. Readers may apply one or both, in whichever order suits their workflow.

Listing 2.5 substitutes the recommended function values outside the recommended range with the corresponding theoretical values using function .disrecommend2theo() (Section 19.5.1). The function-value-table hypercolumns $hladr.E and $phenotype.G of the output are replaced with the substituted function-value-table hypercolumns.

Listing 2.5: Batch Operations (Listing 2.1)

r = seq.int(from = 0, to = 250, by = 10)
out = s |>
  Emark_(r = r, correction = 'none') |>
  Gcross_(i = 'CK+.CD8-', j = 'CK-.CD8+', r = r, correction = 'none') |>
  nncross_(i = 'CK+.CD8-', j = 'CK-.CD8+', correction = 'none') |>
  .disrecommend2theo()
out
# Grouped Hyper Data Frame: ~patient_id/image_id
#
# 15 image_id nested in
# 3 patient_id
#
#       OS gender age    patient_id          image_id  ppp. hladr.E phenotype.G phenotype.nncross
# 1  3488+      F  85 #01 0-889-121 [40864,18015].im3 (ppp)    (fv)        (fv)         (numeric)
# 2  3488+      F  85 #01 0-889-121 [42689,19214].im3 (ppp)    (fv)        (fv)         (numeric)
# 3  3488+      F  85 #01 0-889-121 [42806,16718].im3 (ppp)    (fv)        (fv)         (numeric)
# 4  3488+      F  85 #01 0-889-121 [44311,17766].im3 (ppp)    (fv)        (fv)         (numeric)
# ✂️ --- output truncated --- ✂️

2.3 Summarization

2.3.1 of Statistics of Point-Pattern Marks

Listing 2.6 summarizes various customized statistics of the numeric- and/or multi-type marks of the one-and-only-one point-pattern hypercolumn s$ppp. in the grouped hyper data frame s (Listing 2.1) using function aggregate_marks() (Section 25.7). The results are stored in the numeric-hypercolumn $markstats of the output (Listing 2.6, Listing 2.7). Note that Listing 2.6 does not require the function-value-table hypercolumns created by the batch processes (Listing 2.5).

Listing 2.6: Summarizing customized statistics of point-pattern marks (Listing 2.1)

s_markstat = s |>
  aggregate_marks(by = hladr ~ phenotype, FUN = \(z) {
    c(mean = mean(z), sd = sd(z))
  })
s_markstat
# Grouped Hyper Data Frame: ~patient_id/image_id
#
# 15 image_id nested in
# 3 patient_id
#
#       OS gender age    patient_id          image_id  ppp. markstats
# 1  3488+      F  85 #01 0-889-121 [40864,18015].im3 (ppp) (numeric)
# 2  3488+      F  85 #01 0-889-121 [42689,19214].im3 (ppp) (numeric)
# 3  3488+      F  85 #01 0-889-121 [42806,16718].im3 (ppp) (numeric)
# 4  3488+      F  85 #01 0-889-121 [44311,17766].im3 (ppp) (numeric)
# ✂️ --- output truncated --- ✂️

Listing 2.7: Numeric-hypercolumn s_markstat$markstats: summarizing customized statistics of point-pattern marks (Listing 2.6)

s_markstat$markstats
# 1:
# CK-.CD8-.hladr.mean   CK-.CD8-.hladr.sd CK+.CD8-.hladr.mean   CK+.CD8-.hladr.sd CK-.CD8+.hladr.mean   CK-.CD8+.hladr.sd
#          0.19611248          0.09574274          0.13157655          0.02220862          0.37042708          0.15887763
#
# 2:
# CK-.CD8-.hladr.mean   CK-.CD8-.hladr.sd CK+.CD8-.hladr.mean   CK+.CD8-.hladr.sd CK-.CD8+.hladr.mean   CK-.CD8+.hladr.sd
#          0.32685110          0.26761137          0.11682620          0.04559459          0.56401579          0.26288830
#
# ✂️ --- output truncated --- ✂️

2.3.2 of `fv`-Hypercolumns

Listing 2.8 summarizes the function-value-table (fv, Chapter 19) hypercolumns (Chapter 20) out$hladr.E and out$phenotype.G from the batch processes (Listing 2.5),

by the recommended function values using function keyval() (Section 19.2). The results are stored in the numeric-hypercolumns $hladr.E.y and $phenotype.G.y of the output grouped hyper data frame;
by the cumulative average vertical height of the trapezoidal integration of the recommended function values using function cumvtrapz() (Section 10.2). The results are stored in the numeric-hypercolumns $hladr.E.cumvtrapz and $phenotype.G.cumvtrapz of the output grouped hyper data frame.

The functions keyval() and cumvtrapz() in Listing 2.8 are independent of one another. Readers may apply one or both, in whichever order suits their workflow.

Listing 2.8: Summarizing function-value-tables hypercolumns (Listing 2.5)

out_fv = out |>
  keyval() |>
  cumvtrapz()
out_fv
# Grouped Hyper Data Frame: ~patient_id/image_id
#
# 15 image_id nested in
# 3 patient_id
#
#       OS gender age    patient_id          image_id  ppp. hladr.E phenotype.G phenotype.nncross hladr.E.y phenotype.G.y hladr.E.cumvtrapz phenotype.G.cumvtrapz
# 1  3488+      F  85 #01 0-889-121 [40864,18015].im3 (ppp)    (fv)        (fv)         (numeric) (numeric)     (numeric)         (numeric)             (numeric)
# 2  3488+      F  85 #01 0-889-121 [42689,19214].im3 (ppp)    (fv)        (fv)         (numeric) (numeric)     (numeric)         (numeric)             (numeric)
# 3  3488+      F  85 #01 0-889-121 [42806,16718].im3 (ppp)    (fv)        (fv)         (numeric) (numeric)     (numeric)         (numeric)             (numeric)
# 4  3488+      F  85 #01 0-889-121 [44311,17766].im3 (ppp)    (fv)        (fv)         (numeric) (numeric)     (numeric)         (numeric)             (numeric)
# ✂️ --- output truncated --- ✂️

2.3.3 of Quantiles

Listing 2.9 inspects the hypercolumns of the input grouped hyper data frame out (Listing 2.5) and finds the quantiles of,

the numeric-hypercolumn out$phenotype.nncross (Listing 2.5). The results are stored in the numeric-hypercolumn $phenotype.nncross.quantile of the output grouped hyper data frame;
the numeric mark hladr in the one-and-only-one point-pattern hypercolumn out$ppp. (Section 2.1, Listing 2.1). The results are stored in the numeric-hypercolumn $hladr.quantile of the output grouped hyper data frame.

Listing 2.9: Summarizing quantiles (Listing 2.5)

out_q = out |>
  quantile(probs = seq.int(from = 0, to = 1, by = .1))
out_q
# Grouped Hyper Data Frame: ~patient_id/image_id
#
# 15 image_id nested in
# 3 patient_id
#
#       OS gender age    patient_id          image_id  ppp. hladr.E phenotype.G phenotype.nncross phenotype.nncross.quantile hladr.quantile
# 1  3488+      F  85 #01 0-889-121 [40864,18015].im3 (ppp)    (fv)        (fv)         (numeric)                  (numeric)      (numeric)
# 2  3488+      F  85 #01 0-889-121 [42689,19214].im3 (ppp)    (fv)        (fv)         (numeric)                  (numeric)      (numeric)
# 3  3488+      F  85 #01 0-889-121 [42806,16718].im3 (ppp)    (fv)        (fv)         (numeric)                  (numeric)      (numeric)
# 4  3488+      F  85 #01 0-889-121 [44311,17766].im3 (ppp)    (fv)        (fv)         (numeric)                  (numeric)      (numeric)
# ✂️ --- output truncated --- ✂️

2.3.4 of Kernel Density Estimates

Listing 2.10 inspects the hypercolumns of the input grouped hyper data frame out (Listing 2.5) and finds the kernel density estimates of,

the numeric-hypercolumn out$phenotype.nncross (Listing 2.5). The results are stored in the numeric-hypercolumn $phenotype.nncross.kerndens of the output grouped hyper data frame;
the numeric mark hladr in the one-and-only-one point-pattern hypercolumn out$ppp. (Section 2.1, Listing 2.1). The results are stored in the numeric-hypercolumn $hladr.kerndens of the output grouped hyper data frame.

Listing 2.10: Summarizing kernel density estimates (Listing 2.5)

mdist = out$phenotype.nncross |> unlist() |> max()
out_k = out |>
  kerndens(from = 0, to = mdist)
out_k
# Grouped Hyper Data Frame: ~patient_id/image_id
#
# 15 image_id nested in
# 3 patient_id
#
#       OS gender age    patient_id          image_id  ppp. hladr.E phenotype.G phenotype.nncross phenotype.nncross.kerndens hladr.kerndens
# 1  3488+      F  85 #01 0-889-121 [40864,18015].im3 (ppp)    (fv)        (fv)         (numeric)                  (numeric)      (numeric)
# 2  3488+      F  85 #01 0-889-121 [42689,19214].im3 (ppp)    (fv)        (fv)         (numeric)                  (numeric)      (numeric)
# 3  3488+      F  85 #01 0-889-121 [42806,16718].im3 (ppp)    (fv)        (fv)         (numeric)                  (numeric)      (numeric)
# 4  3488+      F  85 #01 0-889-121 [44311,17766].im3 (ppp)    (fv)        (fv)         (numeric)                  (numeric)      (numeric)
# ✂️ --- output truncated --- ✂️

2.4 Aggregation

Listing 2.11 aggregates (Section 25.6) the customized statistics s_markstat$markstats (Listing 2.7) of the numeric- and/or multi-type marks of the one-and-only-one point-pattern hypercolumn by patient_id using point-wise means pmeans() (Section 42.4), and returns a hyper data frame.

Listing 2.11: Aggregates the customized statistics of the numeric- and/or multi-type marks (Listing 2.6)

s_markstat |>
  aggregate(by = ~ patient_id, fun = pmean)
# Hyperframe:
#      OS gender age    patient_id markstats      ppp.
# 1 3488+      F  85 #01 0-889-121 (numeric) (ppplist)
# 2  1605      M  66 #02 1-037-393 (numeric) (ppplist)
# 3   176      M  84 #03 2-080-378 (numeric) (ppplist)

Listing 2.12 aggregates (Section 25.6) the summarized information from function-value-table hypercolumns (Listing 2.8) by patient_id using point-wise means pmeans() (Section 42.4), and returns a hyper data frame.

Listing 2.12: Aggregates the function-value-tables (Listing 2.8)

out_fv |>
  aggregate(by = ~ patient_id, fun = pmean)
# Hyperframe:
#      OS gender age    patient_id hladr.E.y phenotype.G.y hladr.E.cumvtrapz phenotype.G.cumvtrapz      ppp.  hladr.E phenotype.G
# 1 3488+      F  85 #01 0-889-121 (numeric)     (numeric)         (numeric)             (numeric) (ppplist) (fvlist)    (fvlist)
# 2  1605      M  66 #02 1-037-393 (numeric)     (numeric)         (numeric)             (numeric) (ppplist) (fvlist)    (fvlist)
# 3   176      M  84 #03 2-080-378 (numeric)     (numeric)         (numeric)             (numeric) (ppplist) (fvlist)    (fvlist)

Listing 2.13 aggregates (Section 25.6) the quantiles from the numeric-hypercolumns or the numeric marks of the one-and-only-one point-pattern hypercolumn (Listing 2.9) by patient_id using point-wise means pmeans() (Section 42.4), and returns a hyper data frame.

Listing 2.13: Aggregates the quantiles (Listing 2.9)

out_q |>
  aggregate(by = ~ patient_id)
# Hyperframe:
#      OS gender age    patient_id phenotype.nncross.quantile hladr.quantile      ppp.  hladr.E phenotype.G
# 1 3488+      F  85 #01 0-889-121                  (numeric)      (numeric) (ppplist) (fvlist)    (fvlist)
# 2  1605      M  66 #02 1-037-393                  (numeric)      (numeric) (ppplist) (fvlist)    (fvlist)
# 3   176      M  84 #03 2-080-378                  (numeric)      (numeric) (ppplist) (fvlist)    (fvlist)

Listing 2.14 aggregates (Section 25.6) the kernel density estimates from the numeric-hypercolumns or the numeric marks of the one-and-only-one point-pattern hypercolumn (Listing 2.10) by patient_id using point-wise means pmeans() (Section 42.4), and returns a hyper data frame.

Listing 2.14: Aggregates the kernel density estimates (Listing 2.10)

out_k |>
  aggregate(by = ~ patient_id)
# Hyperframe:
#      OS gender age    patient_id phenotype.nncross.kerndens hladr.kerndens      ppp.  hladr.E phenotype.G
# 1 3488+      F  85 #01 0-889-121                  (numeric)      (numeric) (ppplist) (fvlist)    (fvlist)
# 2  1605      M  66 #02 1-037-393                  (numeric)      (numeric) (ppplist) (fvlist)    (fvlist)
# 3   176      M  84 #03 2-080-378                  (numeric)      (numeric) (ppplist) (fvlist)    (fvlist)
