29  tess

ImportantDisclaimer

These packages (Note 1) are a one-person project undergoing rapid evolution. Backward compatibility (per Hadley Wickham) is provided as a courtesy rather than a guarantee.

Until further notice, these packages should

• not be used as the basis for research grant applications or referenced in final research progress reports,
• not be cited as an actively maintained tool in a peer-reviewed manuscript,
• not be used to support or fulfill requirements for pursuing an academic degree.

In addition, work primarily based on these packages (Note 1) should not be presented at academic conferences or similar scholarly venues.

Furthermore, a person’s ability to use these packages (Note 1) does not necessarily imply an understanding of their underlying mechanisms. Accordingly, demonstration of their use alone should not be considered sufficient evidence of expertise, nor should it be credited as a basis for academic promotion or advancement.

These statements do not apply to the contributors (Tip 1) to these packages (Note 1) with respect to their specific contributions.

These statements do not apply when the maintainer of these packages (Note 1), Tingting Zhan, is credited as the first author, the lead author, and/or the corresponding author in a peer-reviewed manuscript, or as the Principal Investigator or Co-Principal Investigator in a research grant application and/or a final research progress report.

These statements are advisory in nature and do not modify or restrict the rights granted under the GNU General Public License https://www.r-project.org/Licenses/.

The function tess() (v3.7.3, GPL (>= 2)) creates a tessellation, i.e., an R object of S3 class 'tess'.

The S3 generic function as.tess() (v3.7.3, GPL (>= 2)) converts R objects of various classes into a tessellation. Listing 29.1 summarizes the S3 methods for the generic function as.tess() in the spatstat.* family of packages,

Listing 29.1: S3 methods spatstat.*::as.tess.*

library(spatstat)
.S3methods(generic.function = 'as.tess', all.names = TRUE) |>
  attr(which = 'info', exact = TRUE) |>
  subset.data.frame(subset = grepl(pattern = '^spatstat\\.', x = from))

                     visible             from generic  isS4
as.tess.im              TRUE    spatstat.geom as.tess FALSE
as.tess.list            TRUE    spatstat.geom as.tess FALSE
as.tess.owin            TRUE    spatstat.geom as.tess FALSE
as.tess.quadratcount    TRUE    spatstat.geom as.tess FALSE
as.tess.quadrattest     TRUE spatstat.explore as.tess FALSE
as.tess.rppm            TRUE   spatstat.model as.tess FALSE
as.tess.tess            TRUE    spatstat.geom as.tess FALSE
as.tess.tessfun         TRUE    spatstat.geom as.tess FALSE

Listing 29.2 summarizes the S3 methods for the class 'tess' in the spatstat.* family of packages,

Listing 29.2: S3 methods spatstat.*::*.tess

library(spatstat)
.S3methods(class = 'tess', all.names = TRUE) |>
  attr(which = 'info', exact = TRUE) |>
  subset.data.frame(subset = grepl(pattern = '^spatstat\\.', x = from))

                   visible          from       generic  isS4
[.tess                TRUE spatstat.geom             [ FALSE
[<-.tess              TRUE spatstat.geom           [<- FALSE
affine.tess           TRUE spatstat.geom        affine FALSE
as.data.frame.tess    TRUE spatstat.geom as.data.frame FALSE
as.function.tess      TRUE spatstat.geom   as.function FALSE
as.im.tess            TRUE spatstat.geom         as.im FALSE
as.owin.tess          TRUE spatstat.geom       as.owin FALSE
as.tess.tess          TRUE spatstat.geom       as.tess FALSE
connected.tess        TRUE spatstat.geom     connected FALSE
domain.tess           TRUE spatstat.geom        domain FALSE
flipxy.tess           TRUE spatstat.geom        flipxy FALSE
head.tess             TRUE spatstat.geom          head FALSE
identify.tess         TRUE spatstat.geom      identify FALSE
marks.tess            TRUE spatstat.geom         marks FALSE
marks<-.tess          TRUE spatstat.geom       marks<- FALSE
mergeTiles.tess       TRUE spatstat.geom    mergeTiles FALSE
nobjects.tess         TRUE spatstat.geom      nobjects FALSE
plot.tess             TRUE spatstat.geom          plot FALSE
print.tess            TRUE spatstat.geom         print FALSE
reflect.tess          TRUE spatstat.geom       reflect FALSE
rotate.tess           TRUE spatstat.geom        rotate FALSE
scalardilate.tess     TRUE spatstat.geom  scalardilate FALSE
shift.tess            TRUE spatstat.geom         shift FALSE
summary.tess          TRUE spatstat.geom       summary FALSE
tail.tess             TRUE spatstat.geom          tail FALSE
tilenames.tess        TRUE spatstat.geom     tilenames FALSE
tilenames<-.tess      TRUE spatstat.geom   tilenames<- FALSE
unitname.tess         TRUE spatstat.geom      unitname FALSE
unitname<-.tess       TRUE spatstat.geom    unitname<- FALSE
unmark.tess           TRUE spatstat.geom        unmark FALSE
unstack.tess          TRUE spatstat.geom       unstack FALSE
Window.tess           TRUE spatstat.geom        Window FALSE

Note

The examples in Chapter 29 require

library(groupedHyperframe)

Table 29.1 summarizes the S3 methods for the class 'tess' in package groupedHyperframe (v0.4.0, GPL-2),

Table 29.1: S3 methods groupedHyperframe::*.tess (v0.4.0)

	visible	generic	isS4
Math.tess	FALSE	methods::Math	FALSE
Summary.tess	FALSE	methods::Summary	FALSE

29.1 Group-Generic of Numeric Mark(s)

29.1.1 Math

The S3 method Math.tess() transforms one or more numeric marks of a tessellation, and returns a tessellation with the transformed marks (Table 24.3).

Listing 29.3 applies the log-transformation on the numeric marks of the tessellation meningitis$kreise (Section 9.18), and plots the original and log-transformed tessellations side-by-side for comparison (Figure 29.1).

Listing 29.3: Example: log-transformation on tessellation marks

par(mar = c(0,0,0,0))
spatstat.geom::solist(
  kreise_orig = spatstat.data::meningitis$kreise,
  kreise_log = spatstat.data::meningitis$kreise |> log()
) |>
  spatstat.geom::plot.solist(do.col = TRUE, main = 'meningitis$kreise')

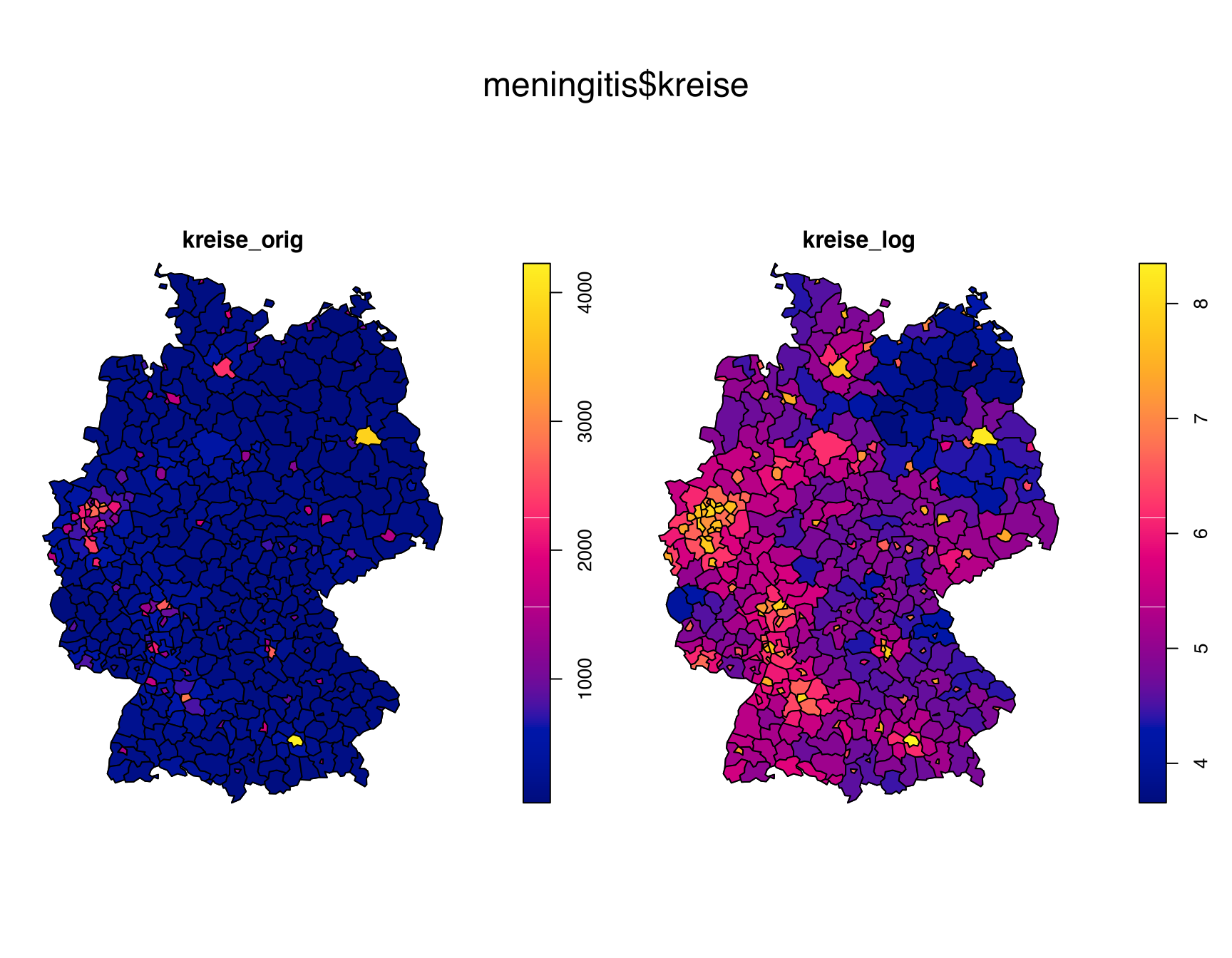

Figure 29.1: meningitis$kreise, original versus log-transformed

Listing 29.4 showcases the exception handling of the log-transformation on the tessellation austates (Section 9.3) without any mark.

Listing 29.4: Exception: log-transformation on tessellation, no mark

spatstat.data::austates |>
  log() |>
  identical(y = spatstat.data::austates) |>
  stopifnot()

29.1.2 Summary

The S3 method Summary.tess() 🚧
